3D Optical Scanning
Go! Scan 50
Max Resolution: 0.500mm
Accuracy: 0.500mm
Recommended Parts: 0.3 to 3.0 meters
3D Optical Scanning
Go! Scan 20
Max Resolution: 0.200mm
Accuracy: 0.100mm
Recommended Parts: 0.05 to 0.5 meters
3D Optical Scanning
Artec Space Spider
Max Resolution: 0.1 mm
Accuracy: 0.05mm
Recommended Parts: 0.05 to 0.5 meters
3D Optical Scanning
Hexagon Aicon
Max Resolution: 0.016 mm
Accuracy: 0.016 mm
Recommended Parts: 0.05 to 1 meter
3D Optical Scanning - Mitutoyo Coordinate Measuring Machine
Crystra - Apex V 574
Max Resolution: 0.02 µm
Accuracy: 1.7 +3L/1000 µm
Recommended Parts: up to 0.7 meters
Precision Machining - Waterjet Cutter
oMAX ProtoMAX
Transverse Speed:2.540 mm/ minute
Cutting Area: 304 x 304 mm
Max Thickness: 25 mm
Repeatability: 0.0076 mm
Linear Accuracy: 0.126 mm
Precision Machining - Simultaneous 5 Axis CNC Machine
Mikron Mille 500U
Travel X Y Z : 500 x 450 x 400 mm
Accuracy: 0.05mm
Spindle Speed: 12k to 20k rpm
Torque: 88 to 120 Nm
Swivel Axis: -65 / +120º
Precision Machining
NDT
NDT Methods
- Visual Testing
- Eddy Current Testing
- Penetrant Testing
- Acoustic Emission
- Ultrasonic Testing
- Radiographic Testing
- Infrared/Thermographic Testing
- Magnetic Particle Testing
- Phased Array Ultrasonic Testing
NDT Equipment
- UT/PAUT: Focus PX, Omniscan SX
- RT: GE Digital Detector Array
- TT: Active System
- AE: AMSY – 6
- ET: Nortec 600, Omniscan MX ECA
AM Machine - Industrial Grade Carbon Fiber Printer
MarkForged X7
AM Technology: Continues Fiber Reinforce
Build Space: 330 x 270 x 200 mm
Thickness Height: 0.050 to 0.250 mm
Min Feature Size: 0.8 mm
Materials: TPU 95, PLA, Nylon, Carbon Fiber, Fiberglass, Kevlar, Onyx
AM Machine - Manufacture Grade Printer
MarkForged Onyx One
AM Technology: FDM
Build Space: 320 x 132 x 164 mm
Thickness Height: 0.1 to 0.2 mm
Min Feature Size: 0.8 mm
Materials: Onyx (Carbon fiber with nylon)
AM Machine - Industrial Grade Printer
Stratasys F370
AM Technology: FDM
Build Space: 355 x 254x 355 mm
Thickness Height: 0.127 to 0.330 mm
Min Feature Size: 2.5 mm
Materials: ABS-ESD7, ABS-M30, ABS-CF10, PLA, ASA, TPU-92A, PC-ABS
AM Machine - Large Format Printer
Builder Extreme PRO 1000
AM Technology: FDM
Build Space: 700 x 700 x 820 mm
Thickness Height: 0.2 to 0.9 mm
Min Feature Size: 0.8 to 2.4 mm
Materials: PLA, PVA, Woodfill, PET, Bronzefill, Flexible PLA
AM Machine - Professional Dual Nozzle Printer
Ultimaker S3 Extended
AM Technology: FDM
Build Space: 230 x 190 x 200 mm
Thickness Height: 0.02 to 0.200 mm
Min Feature Size: 0.25, 0.4, 0.8 mm
Materials: PLA, CPE, TPU-95A, ABS, PP, PC, Nylon, PETG, Tough PLA
AM Machine - Professional Dual Nozzle Printer
Ultimaker S5 Extended
AM Technology: FDM
Build Space: 330 x 240 x 300 mm
Thickness Height: 0.02 to 0.600 mm
Min Feature Size: 0.5 mm
Materials: PLA, CPE, CPE+, PETG, TPU-95A, ABS, PP, PC, Nylon, Tough PLA
AM Machine - Professional Grade Resin Printer
Formlab Form 2
AM Technology: SLA / DLP
Build Space: 145 x 145 x 175 mm
Thickness Height: 0.025 to 0.100 mm
Min Feature Size: 0.140 mm
Materials: Tough, Color, Dental, Flexible, Nylon, Rigid, High Temp
AM Machine - Industrial Grade Resin Printer
Object30 Prime
AM Technology: PolyJet
Build Space: 294 x 192 x 148.6 mm
Thickness Height: 0.016 to 0.036 mm
Min Feature Size: 0.5 mm
Materials: Tough, Rubber-like, Rigid Opaque, Clear, High Temp, Biocompatible,Simulated PP
AM Machine - Professional Grade Printer
HP Jet Fusion 580 Color 3D Printer
AM Technology: Powder Bed Fusion (MJF)
Build Space: 190 × 332 × 248 mm
Thickness Height: 0.08 mm
Min Feature Size: 0.5 mm
Materials: Polyamide Powder
AM Machine - Plastic Shredding Machine
3devo SHR3D IT
Material Shred: Plastic/Polymer
Granulator Knife: 3 knives/ 900rpm
Shredder Knife: 6 blades// 9rpm
Filter Hole Size: 3mm
AM Machine - Plastic Filament Maker
3devo Composer Series 450
Technology: Plastic Extrusion
Filament Range: 0.5 to 3.0 mm
Filament Materials: PLA, ABS, PS, PC, PETG, TPU, TPE, PPS, PVA, Bio PE, NEW PET, PA (6,12,66), PEEK, PEKK, PAEK, PEI, PSU, PES
AM Machine - Polymer Drying Machine
3devo Airid
Hopper Size: 5 Liters
Recommended: 1 to 3 kg
Drying Hours: 1kg / 3hrs for PA6
AM Machine - Industrial MultiJet Printer
MJP 2500 Plus
AM Technology: MJP (MultiJet Printing)
Build Space: 294 x 211 x 144 mm
Thickness Height: 0.032 mm
Min Feature Size: 0.3 mm
Materials: Elastomer Resin, Transparent, Rigid Resin, High Temp Resin, Wax
AM Machine - Industrial Grade Large Format Printer
Creatbot 600D Pro
AM Technology: FDM
Build Space: 600x 600 x 600 mm
Thickness Height: 0.05 to 0.3 mm
Min Feature Size: 0.6, 0.8, 1.2, 1.6, 2.0 mm
Materials: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA
AM Machine - Industrial Grade Large Resin Printer
Asiga PRO 4K XL
AM Technology: DLP
Build Spac: 217 × 122 × 400 mm
Thickness Height: 0.010 mm
Min Feature Size: 0.056, 0.080 mm
Materials: ABS-like, PP-like, Flexible, Clear, High-temp, Castable, Wax and more
Extended Capabilities - Industrial Precision Metal Printer
Sodick OPM250L
AM Technology: Powder Bed Fusion (SLM)
Build Space: 250 x 250 x 250 mm
Thickness Height: 0.05 mm
Laser Precision: ±0.03 mm
Min Feature Size: 0.2 to 0.6 mm
Technology: Precision Machining (Cutting)
Spindle Speed: 6k to 45k rpm
Torque: 0.8 Nm
Cutting Precision: 0.1 μm
Material: Maraging Steel, Stainless Steel, Tool Steel
Design for AM
Suite of CAD & FEA Softwares
- Fusion 360
- nTopology
- ANSYS
- ANSYS Fluent
- CREO
- Dassault Systemes
- ABAQUS And more…

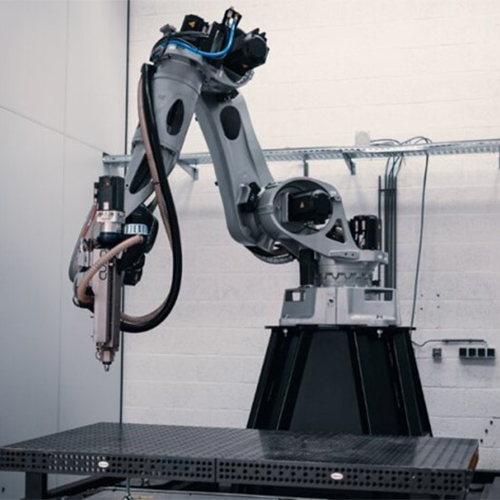

Extended Capabilities
Industrial Large Format Metal Printer
AM Technology: Direct Energy Deposition (DED – Laser (Wire + Powder)
Build Space: 1.0 x 1.0 x 1.0 meter
Thickness Height: 0.2 to 0.9 mm
Position Repeatability: 0.06 mm
Min Feature Size: 0.8 mm
Materials: Steel, Nickel-based, Cobalt-based, and Carbide-based
